Take a CMYK background of 100 % cyan, 0 % magenta, 0 % yellow, 50 % black. Place the following different objects on top of this background in such a way that they do not overlap each other:
| Object | Color space and values | Overprint mode |
|---|---|---|
|
1 |
80 % Gray |
OPM 0 |
|
2 |
80 % Gray |
OPM 1 |
|
3 |
C: 0 % M: 0 % Y: 0 % K: 20 % |
OPM 0 |
|
4 |
C: 0 % M: 0 % Y: 0 % K: 20 % |
OPM 1 |
|
5 |
20 % of spot color Black |
OPM 0 |
|
6 |
20 % of spot color Black |
OPM 1 |

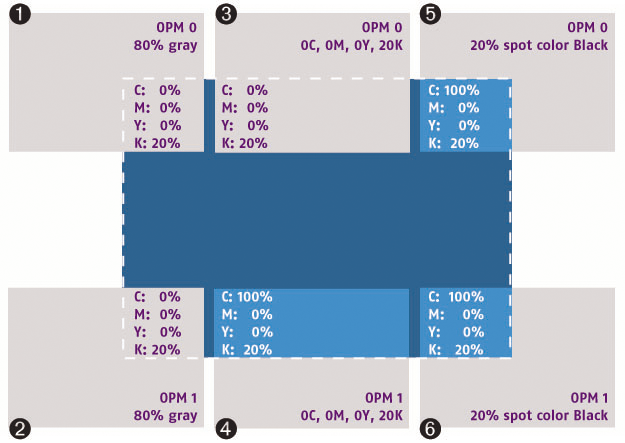

The results will be as follows:
